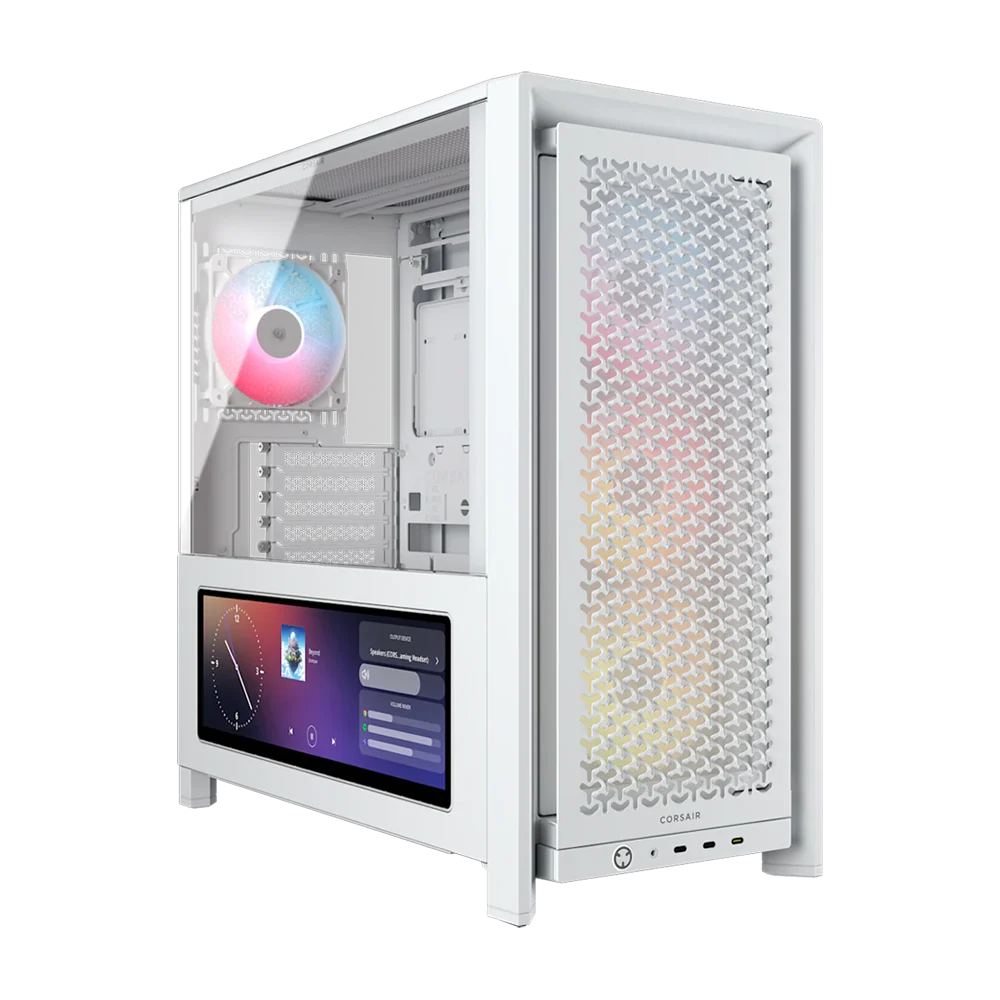

CORSAIR FRAME 4000D LCD RS ARGB Premium Mid Tower Case - White

• XENEON EDGE 14.5" LCD Touchscreen pre-installed

• 4x RS120 PWM ARGB Fans for powerful cooling

• Modern Front I/O panel with 3x USB Type-C ports

• InfiniRail™ Fan Mounting System for superior cooling

• Compatibility with reverse connector motherboards

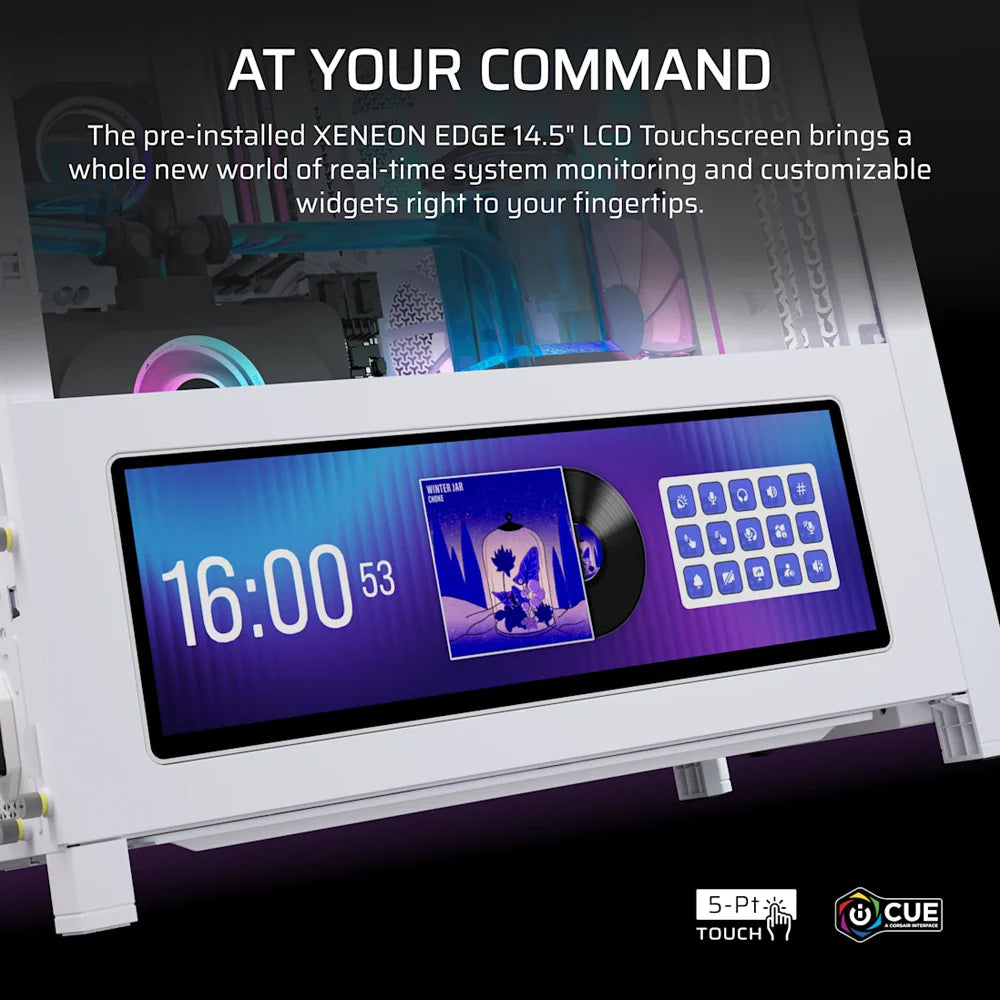

A TOUCH ABOVE

LEVEL UP YOUR BATTLESTATION
Take your build to the next level with this standout 14.5" display. Showcase system metrics, calendars, weather apps, or in-game chats.

PREMIUM POWER

BUILD YOUR DREAM MACHINE
This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.

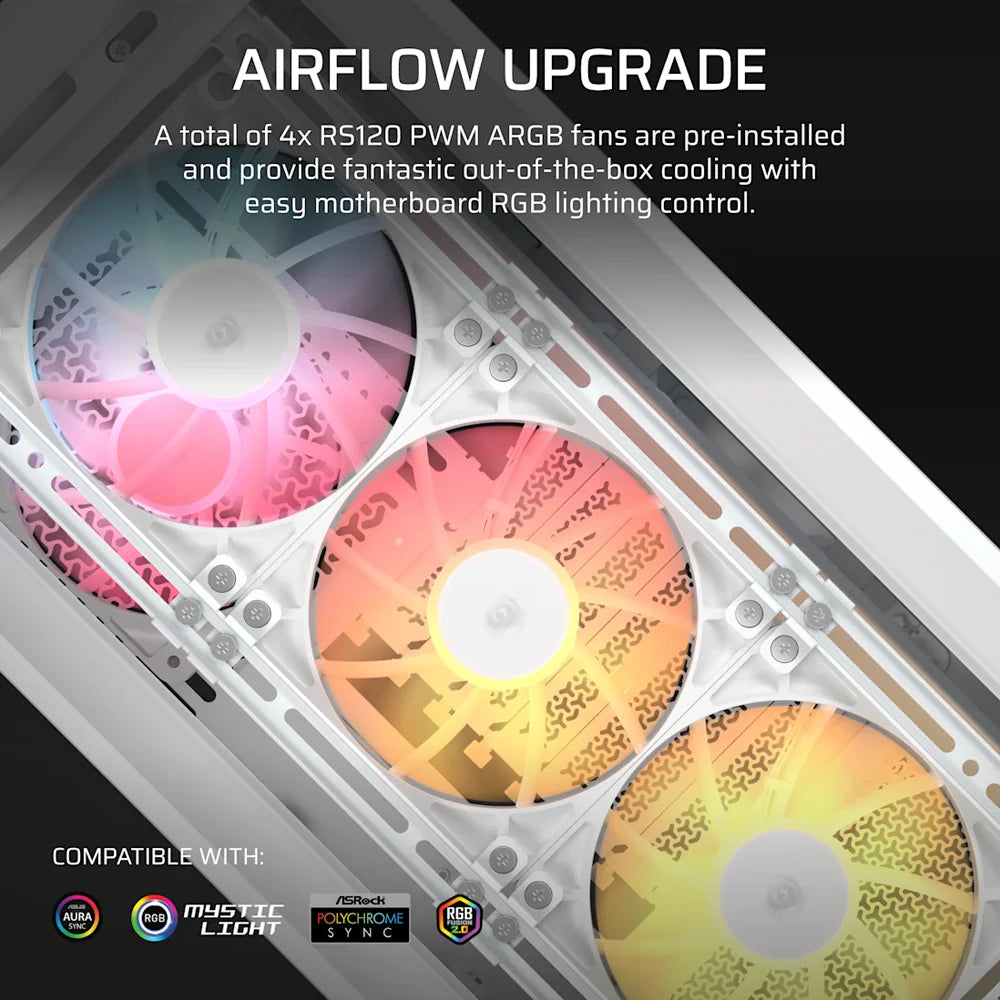

EVEN COOLER

FOUR POWERFUL RS120 ARGB FANS INCLUDED
The FRAME 4000D LCD provides full system cooling right out of the box with three RS120 ARGB intake fans and one RS120 ARGB exhaust fan for powerful cooling with very low-noise and customizable lighting. A new 120mm/140mm fan mount has been added to the bottom of the chassis as well, giving builders even more options for fan placement.

FAN FOCUSED

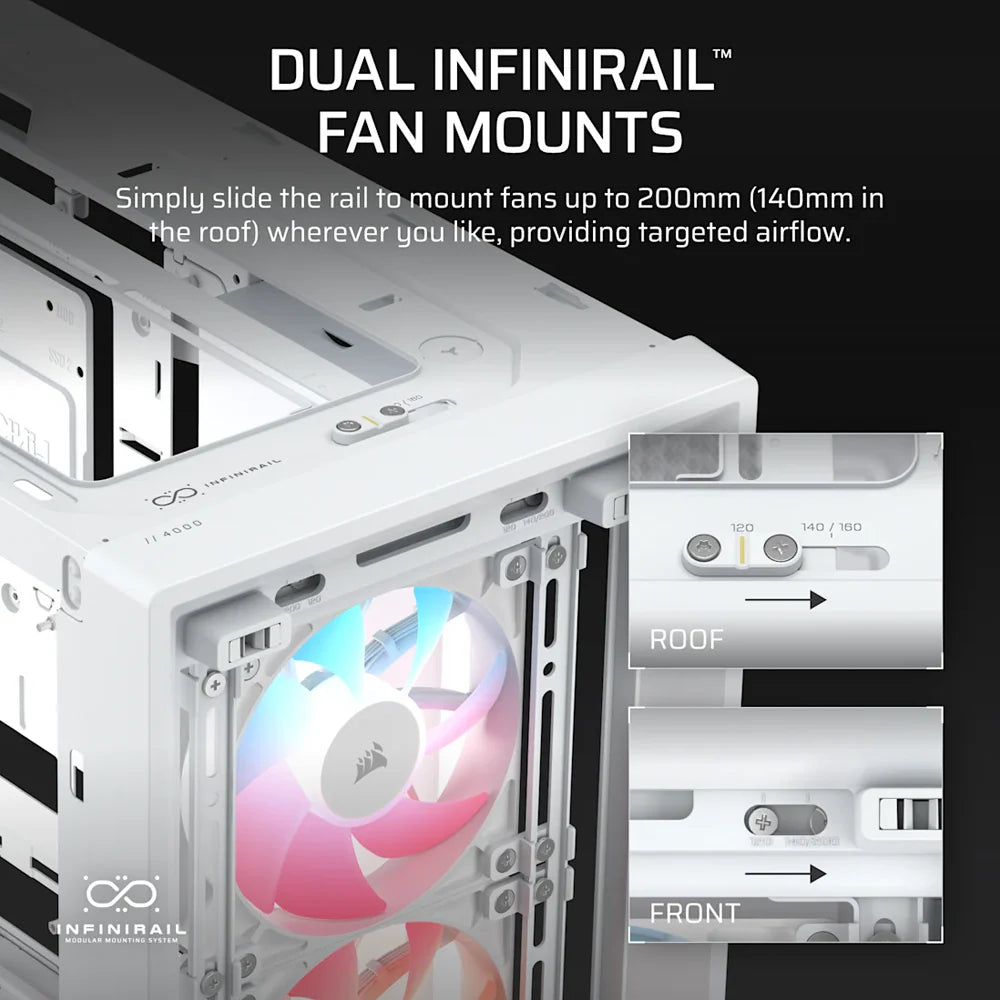

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM
The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

MODERN FRONT PANEL I/O
Puts your connections within easy reach, including a USB 3.2 Gen 2x2 Type-C port with 20Gb/s of bandwidth, 2x USB 3.2 Gen 1 Type-C ports with 5Gb/s of bandwidth, and a combination audio/microphone jack.

BUILD AND CHILL

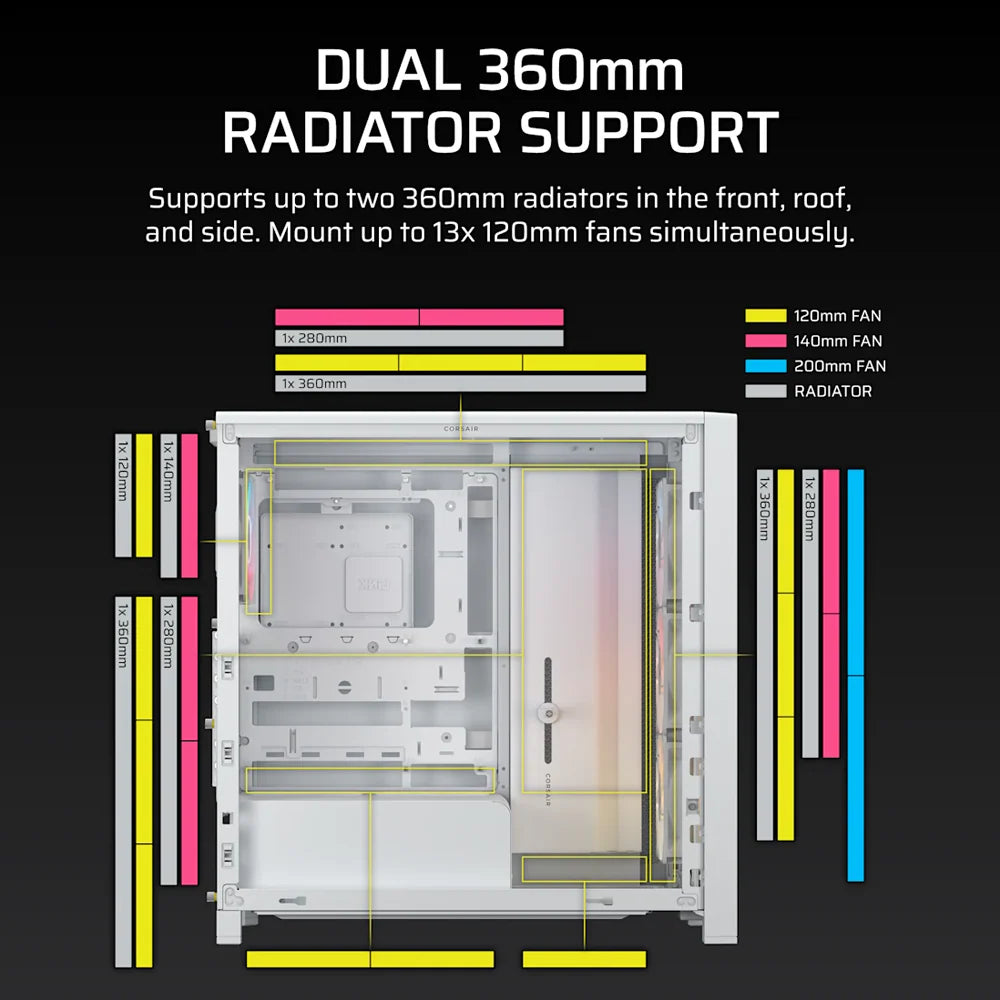

DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators—front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

HIDDEN FROM VIEW

LOOK, NO CABLES
The case is fully compatible with motherboards with backside connections and works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards. It features ample connector and cable cutouts along with plenty of tie-downs to keep your build neat and organized.

A BREEZE TO BUILD IN
With a modern design approach to a mainstream PC format, the FRAME 4000D LCD RS ARGB has the convenient features to take the hassle out of your build.

EXTRA AIRFLOW
A new 120mm bottom fan mount gives PC builders even more options for fan placement.

SAG-FREE GRAPHICS CARDS
Every CORSAIR FRAME 4000D LCD includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD
Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

WIDE COOLING FLEXIBILITY
Customize your cooling setup with room for up to 13x 120mm fans, plus versatile radiator mounting options including up to dual 360mm radiators. Install a GPU up to 405mm, even with fans installed in the front.

The FRAME 4000D LCD has more than enough space to accommodate and cool the most ambitious builds.

This spacious chassis supports up to 13x 120mm fans or 7x 140mm fans for exceptional internal airflow and super-low temperatures.

Achieve the pinnacle of performance with liquid cooling and mount dual 360mm radiators with three locations to choose from: front, side, or roof.

Specifications

• Case Supported : Mini-ITX, Micro-ATX, ATX, E-ATX (305mm x 277mm)

• Case Height : 486mm

• Case Length : 490mm

• Case Width : 239mm

• Material : Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

• Color : White

• Case Size : Mid-Tower

• Radiator Compatibility : 120mm, 140mm, 240mm, 280mm, 360mm

• Case Window : Tempered Glass

• Compatible Liquid Coolers : H60, H100, H115, H150, NAUTILUS, TITAN

• Internal 3.5" Drive Bays : 2

• Internal 2.5" Drive Bays : 4

• Maximum CPU Cooler Height : 170mm

• Maximum PSU Length : 220mm

• Case Front IO : (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-A, (1x) Audio in/out

• Maximum GPU Length : 430mm

• Weight : 12.36kg

• Case Expansion Slots : 7 Horizontal or 3 Vertical

• Case Power Supply : ATX

• Radiator Support - Top : 360mm, 280mm, 240mm

• Radiator Support - Front : 360mm, 280mm, 240mm

• Radiator Support - Bottom : None

• Radiator Support - Side : 360mm, 280mm, 240mm

• Radiator Support - Rear : 140mm, 120mm

• Fan Support - Top : 3x 120mm, 2x 140mm

• Fan Support - Front : 3x 120mm, 2x 140mm, 2x 200mm

• Fan Support - Bottom : 2x 120mm

• Fan Support - Side : 3x 120mm; 2x 140mm

• Fan Support - Rear : 1x 120mm, 1x 140mm

• Front IO Motherboard Connections : 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

• Reverse Connector Motherboard Support : Yes

• Included Fans : RS Series

• Dust Filtration : Yes

• Cable Routing Space : 37mm

• RapidRoute Included : No

• Left Side Panel : Tempered Glass

• Right Side Panel : Steel

• Vertical Mount Support : Supported (Riser Card Sold Separately)
